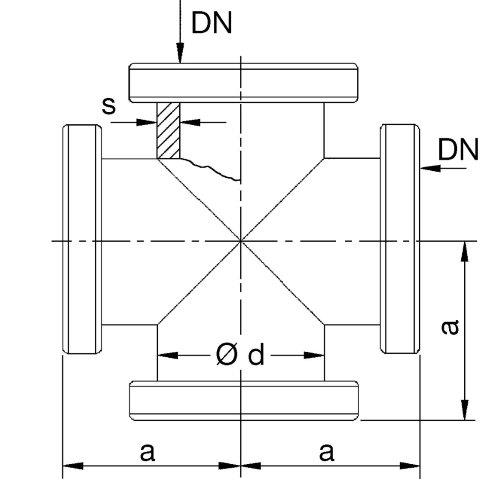

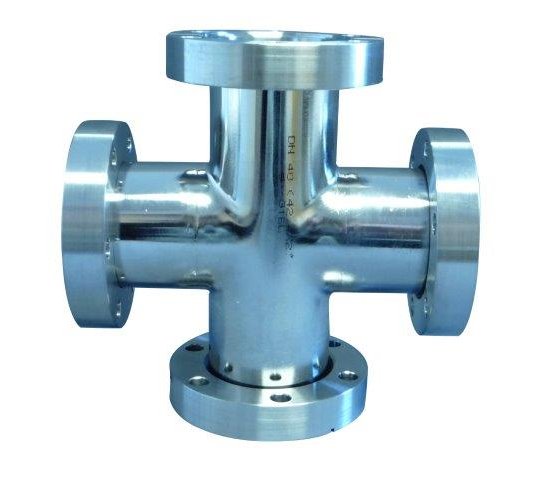

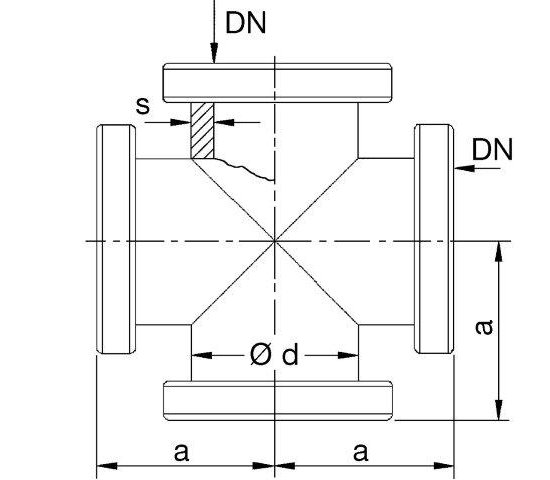

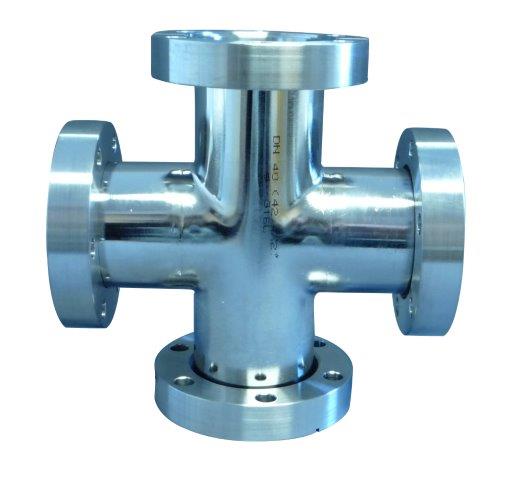

CF-cross, flanges 304L fixed, DN 16 a=38 / Ød=16 (19x1,5)
138,00 EUR
plus 19% VAT | plus
Shipping costs
Item no.:
7111F
Delivery time:
available on request
Questions regarding the item
Print item (PDF)
Description
Download Step-CAD-File
Category: UHV Vakuumbauteile CF,UHV-Verzweigungen,CF Kreuzstück 1.4306 Flansche fest
CF-Kreuzstück 1.4306, Flansche fest, NW 16 a=38 / Ød=16 (19x1,5)
