Bild 1 - ISO-K-blind flange SST 304 DN 100 Øa=130 / Øb=102 h=12
Bild 2 - ISO-K-blind flange SST 304 DN 100 Øa=130 / Øb=102 h=12
Bild 1
Bild 2

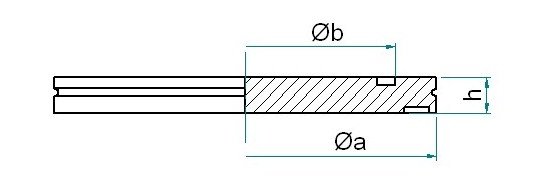

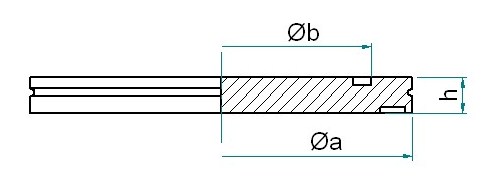

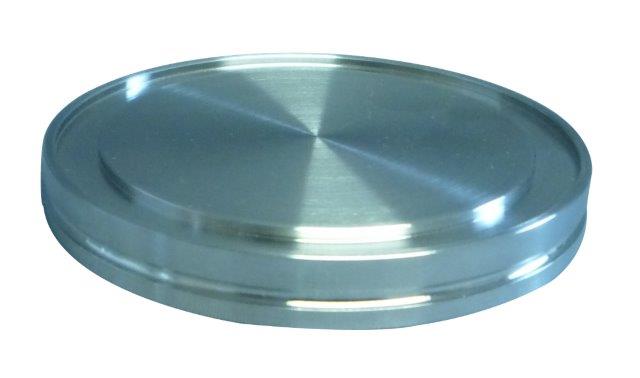

ISO-K-blind flange SST 304 DN 100 Øa=130 / Øb=102 h=12

38,90 EUR
plus 19% VAT | plus Shipping costs
Item no.: 6422
Delivery time:
stock is available stock is available
Download Step-CAD-FileDownload Step-CAD-File

Category: Klammerflanschbauteile ISO-K,ISO-K Bauteile,ISO-K Blindflansch 1.4301
ISO-K-Blindflansch 1.4301 DN 100 Øa=130 / Øb=102 h=12
