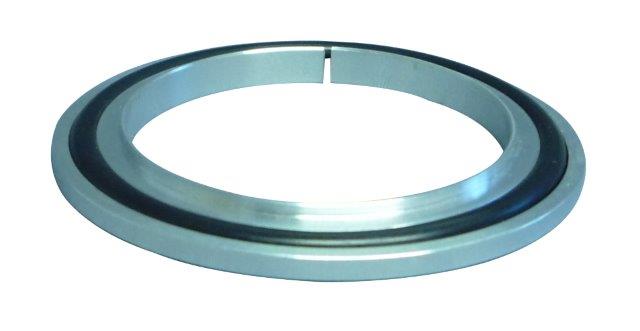

Bild 1 - ISO-centering ring aluminium/Viton with outer ring DN 250 Øa=287 / Øb=258 / Øc=261 / d=3,9 / e=8

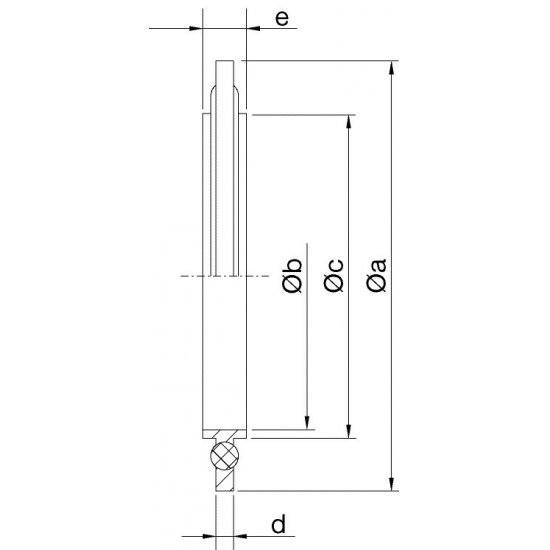

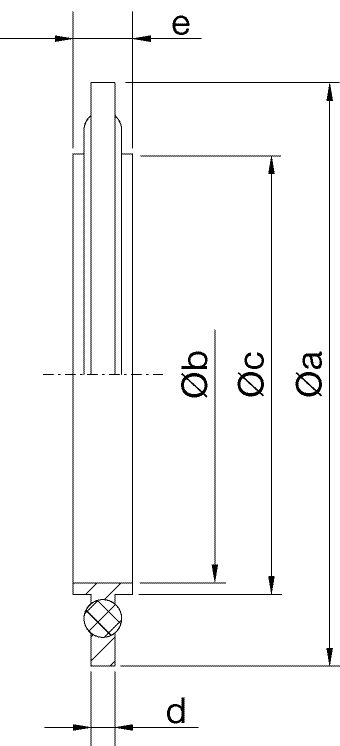

Bild 2 - ISO-centering ring aluminium/Viton with outer ring DN 250 Øa=287 / Øb=258 / Øc=261 / d=3,9 / e=8
Bild 1
Bild 2

ISO-centering ring aluminium/Viton with outer ring DN 250 Øa=287 / Øb=258 / Øc=261 / d=3,9 / e=8

53,30 EUR
plus 19% VAT | plus Shipping costs
Item no.: 6255
Delivery time:
stock is available stock is available
Download Step-CAD-FileDownload Step-CAD-File

Category: Klammerflanschbauteile ISO-K,ISO-K Dichtungsbauteile,ISO-K Zentrierring m. Aussenring Aluminium
IS0-Zentr.Ring AL/Vi mit AR DN 250 Øa=287 / Øb=258 / Øc=261 / d=3,9 / e=8
